| Model | D-60A (CH1/CH2) | D-60B (CH1/CH2) |
|---|---|---|
| CH1 Output Voltage | 5V | 5V |
| CH2 Output Voltage | 12V | 24V |
| CH1 Output Current | 4A | 3A |
| CH2 Output Current | 3A | 1.8A |
| CH1 Output Voltage Range | ±2% | ±2% |
| CH2 Output Voltage Range | ±6% | ±5% |
| CH1 Output Current Range | 0.3-4A | 0.3-3A |
| CH2 Output Current Range | 0.2-3A | 0.2-1.8A |
| Wave and noise | 75mVp-p / 150mVp-p | 75mVp-p / 150mVp-p |
| Inlet stability | ±0.5% / ±1% | ±0.5% / ±0.5% |
| Load stability | ±0.5% / ±4% | ±0.5% / ±4% |
| DC output power | 56W (A) / 58W (B) | |
| Efficiency | 73% | |
| Adjustable range for DC voltage | CH1; +10%, -5% | |
| AC input voltage range | 85～264VAC 47～63Hz;120～370VDC | |
| Input current | 2A/115V 1A/230V | |
| AC inrush current | Cold-start current 30A/115V 60A/230V | |
| Leakage current | <1mA/240VAC | |
| Overload protection | 105%～150% Type:Output shutdown Reset：auto recovery | |
| Over-voltage protection | CH1:5.75～6.75V | |
| Temperature coefficient | ±0.03%/℃(0～50℃)ON+5V | |
| Setup, rise, hold up time | 800ms, 50ms, 30ms/115VAC 300ms,50ms,80ms/230VAC | |
| Vibration | 10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |
| Withstand voltage | Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC, Output and enclosure:0.5KvAC | |
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |
| Working temperature & humidity | -10℃～+60℃, 20%～90%RH | |
| Store temperature & humidity | -20℃～+85℃, 10%～95%RH | |
| Overall dimension | 159×97×38mm | |
| Weight | 0.55Kg | |

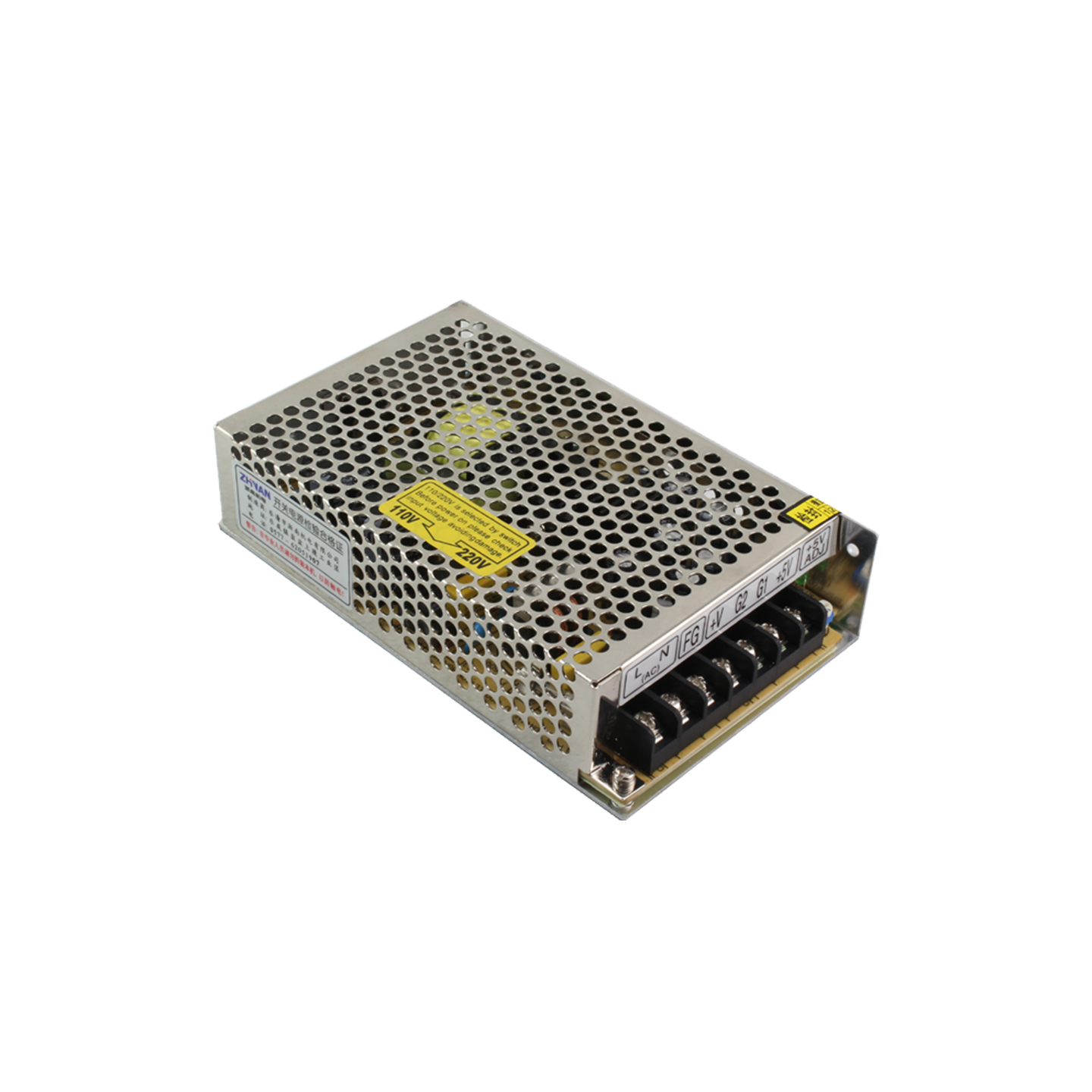

D-60 Series Dual Output Switching Power Supply | 60W AC-DC Converter
- ✔ Dual output channels for versatile applications
- ✔ Low price and high reliability
- ✔ AC input power suitable for the world
- ✔ 100% full-load burn-in test
- ✔ Installed with EMI filter, minimum wave
- ✔ Soft-start current can reduce the AC input impact efficiency
- ✔ With short-circuit and overload protection
- ✔ High efficiency and low operation temperature
