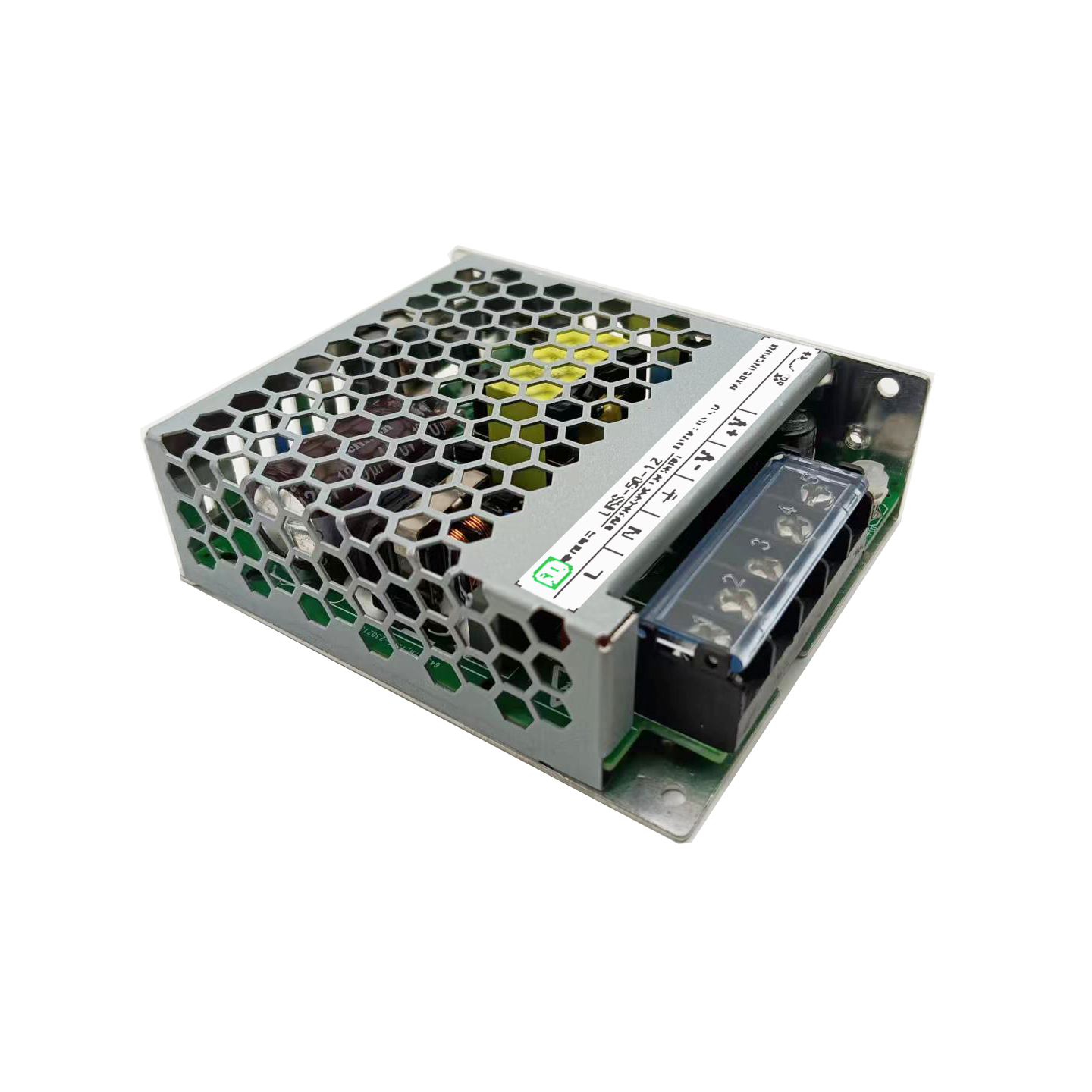

LRS-50 Switching Power Supply is a compact and reliable 50W AC/DC power solution, available in 12V, 24V, and 48V output.

specification:

Model	LRS-50-12	LRS-50-24	LRS-50-48
DC output voltage	12V	24V	48V
Output voltage range	±1%	±1%	±1%
Rated output current	4.2A	2.2A	1.1A
Output current range	0-4.2A	0-2.2A	0-1.1A
Wave and noise	120mVp-p	150mVp-p	200mVp-p
Line Regulation	±0.5%	±0.5%	±0.5%
Load Regulation	±0.5%	±0.5%	±0.5%
DC output power	50.4W	52.8W	52.8W
Efficiency	86%	88%	90%
Adjustable range for DC voltage	±10%	±10%	±10%
AC input voltage range	90～264VAC selected by switch / 254～373VDC
Input current	0.95A/115V, 0.56A/230V
AC inrush current	40A/230V
Leakage current	＜3.5mA/240VAC
Overload protection	105%～150% Type: Output shutdown Reset: auto recovery
Over-voltage protection	13.8～16.2V	27.6～32.4V	57.6～67.2V
High-temperature protection	Iron shell heat dissipation
Temperature coefficient	±0.03%/℃(0～50℃)
Setup, rise, hold up time	1.5s, 50ms, 20ms
Vibration	10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output/internal/enclosure: 500VDC/100MΩ
Working temperature and humidity	-10℃～+60℃, 20%～90%RH
Store temperature and humidity	-20℃～+85℃, 10%～95%RH
Overall dimension	998230mm
Weight	0.23Kg
