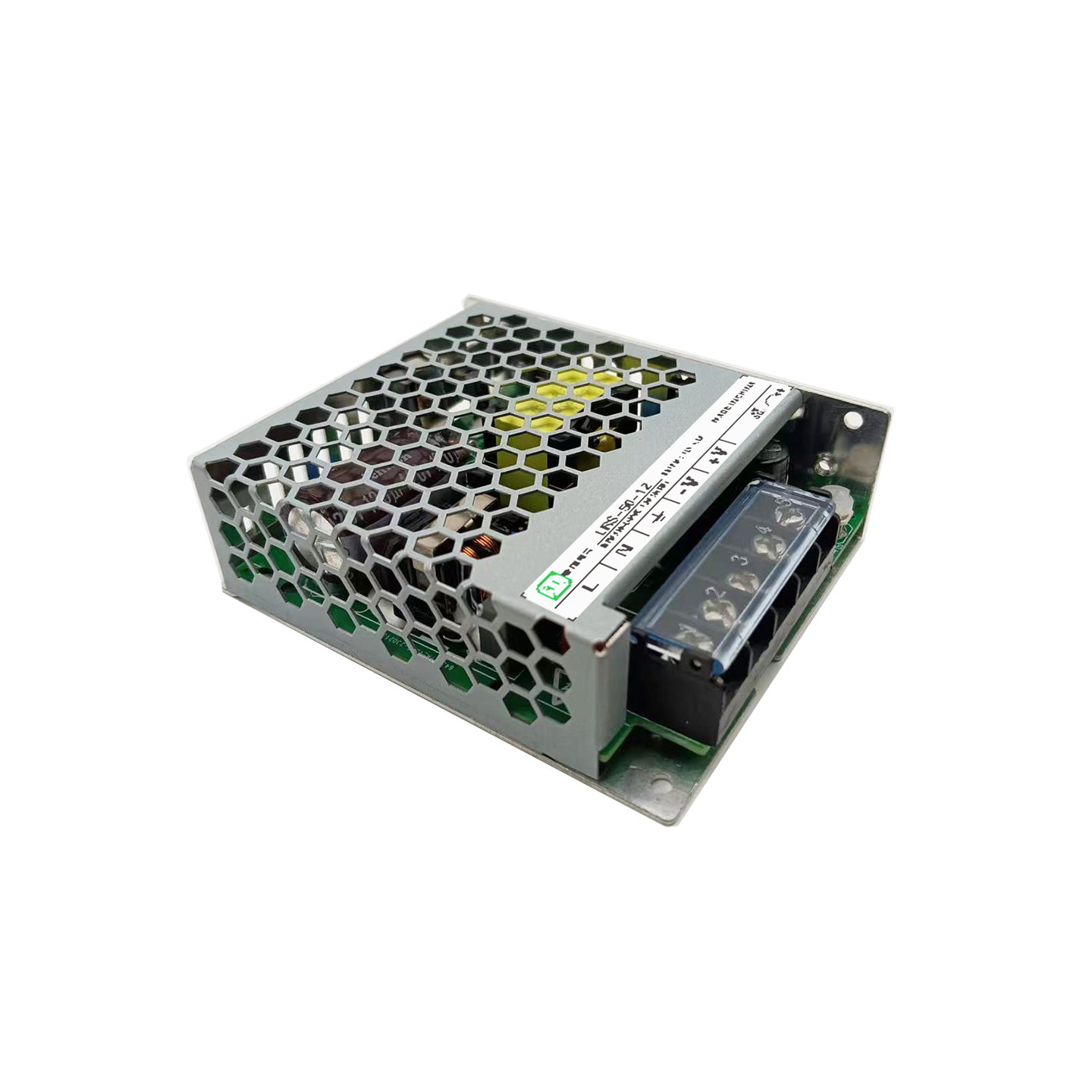

The LRS-75 Switching Power Supply provides dependable 75W AC/DC output for a wide range of industrial and automation applications. LRS-75 Switching Power Supply is engineered for global AC input, high efficiency, and comprehensive protection, ensuring safe and stable operation in demanding environments.
| Specification | LRS-75-12 | LRS-75-24 | LRS-75-48 |
|---|---|---|---|
| DC Output Voltage | 12V | 24V | 48V |
| Output Voltage Range | ±1% | ±1% | ±1% |
| Rated Output Current | 6A | 3.2A | 1.6A |
| Output Current Range | 0–6A | 0–3.2A | 0–1.6A |
| Wave and Noise | 120mVp-p | 150mVp-p | 200mVp-p |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±0.5% | ±0.5% | ±0.5% |
| DC Output Power | 72W | 76.8W | 76.8W |
| Efficiency | 86% | 88% | 90% |
| Adjustable DC Voltage | ±10% | ±10% | ±10% |
| AC Input Voltage Range | 90~264VAC (selected by switch), 254~373VDC | ||
| Input Current | 1.4A/115VAC, 0.85A/230VAC | ||
| AC Inrush Current | 40A/230V | ||
| Leakage Current | <3.5mA/240VAC | ||
| Overload Protection | 105%–150% Type: Output shutdown, Reset: auto recovery | ||
| Over-voltage Protection | 13.8–16.2V | 27.6–32.4V | 57.6–67.2V |
| High-temperature Protection | Iron shell cooling | ||
| Temperature Coefficient | ±0.03%/℃ (0–50℃) | ||
| Setup, Rise, Hold Up Time | 1.5s, 50ms, 20ms | ||
| Vibration | 10–500Hz, 2G 10min/1cycle, Period for 60min, Each axes | ||
| Withstand Voltage | Input and output internal: 1.5KvAC; Input and enclosure: 1.5KvAC; Output and enclosure: 0.5KvAC | ||
| Isolation Resistance | Input and output internal, input and enclosure, output and enclosure: 500VDC/100MΩ | ||
| Working Temperature & Humidity | -10℃–+60℃, 20%–90%RH | ||
| Store Temperature & Humidity | -20℃–+85℃, 10%–95%RH | ||
| Overall Dimension | 99 × 97 × 30mm | ||
| Weight | 0.25Kg | ||
