| Model | Q-120 (CH1/CH2/CH3/CH4) |
|---|---|
| CH1 Output Voltage | 5V |
| CH2 Output Voltage | 12V |
| CH3 Output Voltage | -5V |
| CH4 Output Voltage | -12V |
| CH1 Output Current | 16A |
| CH2 Output Current | 2A |
| CH3 Output Current | 0.5A |
| CH4 Output Current | 0.5A |
| CH1 Output Current Range | 2-16A |
| CH2 Output Current Range | 0.5-2A |
| CH3 Output Current Range | 0-0.5A |
| CH4 Output Current Range | 0-0.5A |
| Wave and noise | 80mVp-p/200mVp-p/100mVp-p/200mVp-p |
| Inlet stability | ±0.5%/±1%/±1%/±1% |
| Load stability | ±0.5%/±5%/±5%/±5% |
| DC output power | 120W |
| Efficiency | 79% |
| Adjustable range for DC voltage | CH1: +10%, -5% |
| AC input voltage range | 88～132VAC/176～264VAC selected by switch 47～63Hz; 248～370VDC |
| Input current | 2.5A/115V 1.25A/230V |
| AC inrush current | Cold-start current 35A |
| Leakage current | <3.5mA/240VAC |
| Overload protection | 105%～150% Type: Output shutdown Reset: auto recovery |
| Temperature coefficient | ±0.03%/℃(0～50℃) ON+5V |
| Setup, rise, hold up time | 200ms, 50ms, 20ms |
| Vibration | 10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes |
| Withstand voltage | Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC, Output and enclosure:0.5KvAC |
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ |
| Working temperature & humidity | -10℃～+60℃, 20%～90%RH |
| Store temperature & humidity | -20℃～+85℃, 10%～95%RH |
| Overall dimension | 199×98×38mm |
| Weight | 0.93Kg |

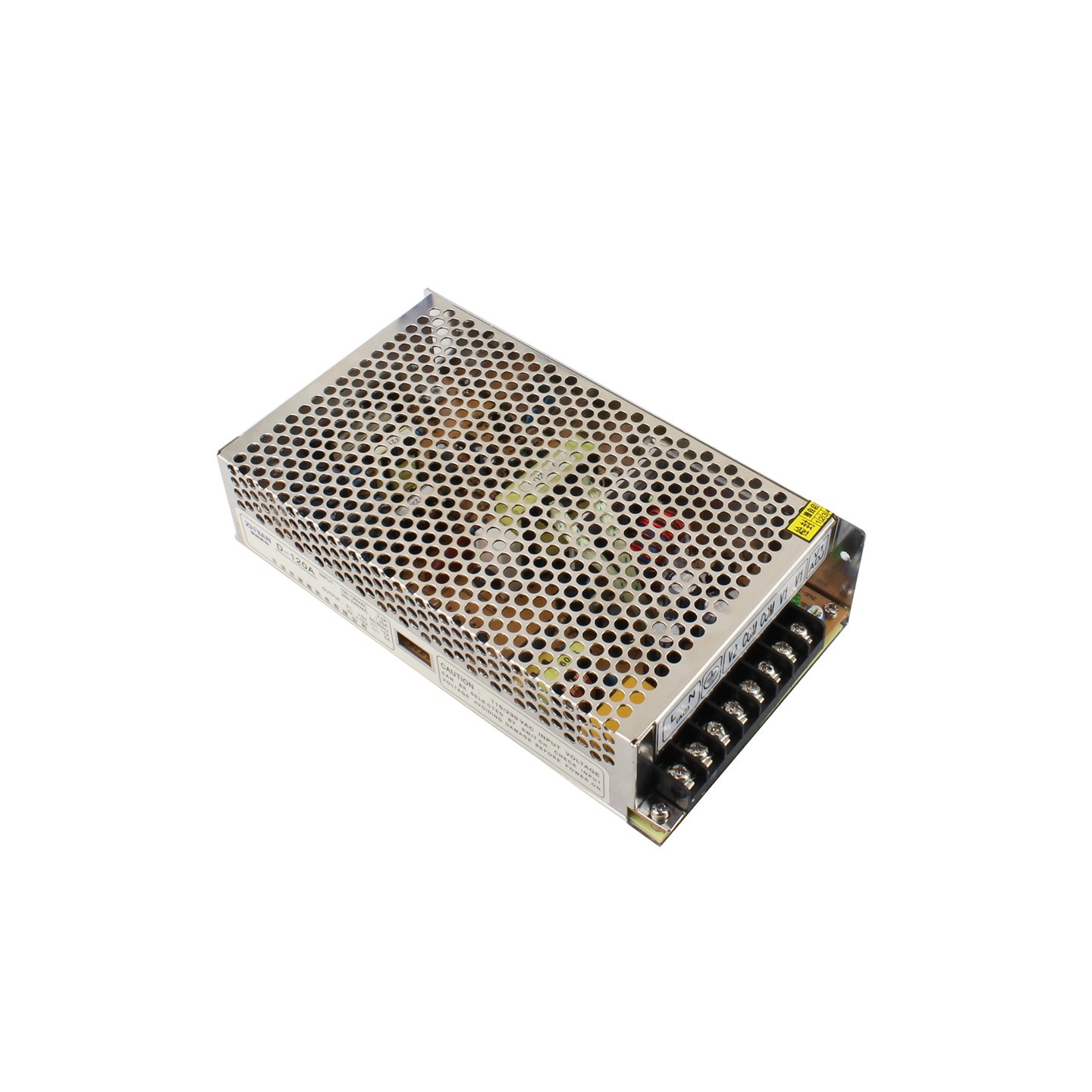

Q-120 Series Quadruple Output Switching Power Supply | 120W AC-DC Converter
Q-120 Series quadruple output switching power supply, four independent outputs, high reliability, worldwide AC input, protections, Yueqing Zhenan Electromechanical Co., Ltd.
- ✔ Quadruple output channels for advanced applications
- ✔ Low price and high reliability
- ✔ AC input power suitable for the world
- ✔ 100% full-load burn-in test
- ✔ Installed with EMI filter, minimum wave
- ✔ Soft-start current can reduce the AC input impact efficiency
- ✔ With short-circuit and overload protection
- ✔ High efficiency and low operation temperature
