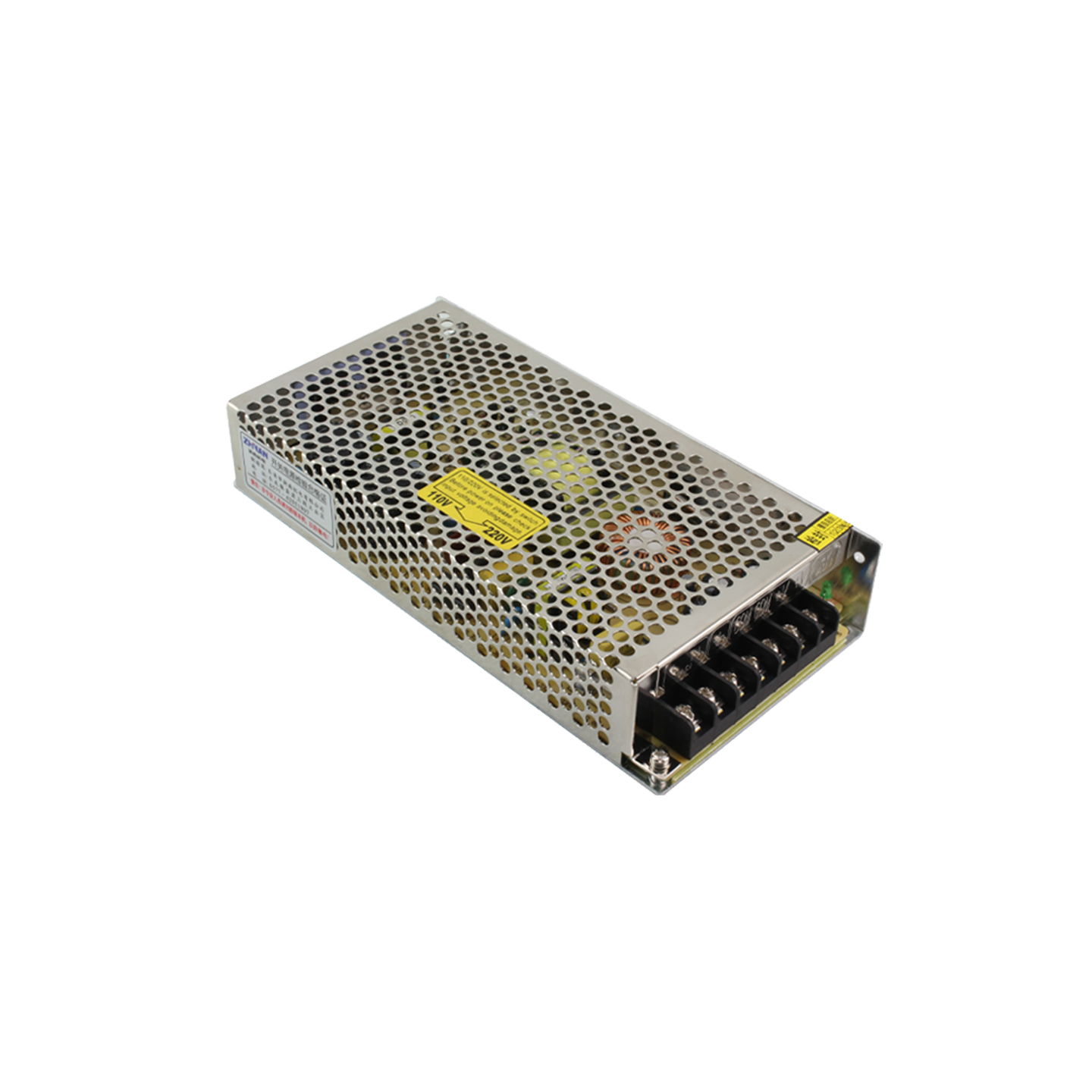

Name: S-100 Series Single Output Switching Power Supply
SKU: S-100

S-100 Series Single Output Switching Power Supply | 100W 3V 5V 7.5V 12V 15V 24V 27V 48V AC-DC Converter

Model	S-100-3	S-100-5	S-100-7.5	S-100-12	S-100-15	S-100-24	S-100-27	S-100-48
DC output voltage	3V	5V	7.5V	12V	15V	24V	27V	48V
Output voltage range	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	20A	20A	13.6A	8.5A	6.7A	4.5A	3.7A	2A
Output current range	0-20A	0-20A	0-13.6A	0-8.5A	0-6.7A	0-4.5A	0-3.7A	0-2A
Wave and noise	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
Load stability	±0.5%	±0.5%	±0.5%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
DC output power	60W	100W	102W	102W	100.5W	108W	99.9W	96W
Efficiency	70%	78%	80%	81%	81%	84%	84%	84%
Adjustable range for DC voltage	2.85～3V	4.75～5.5V	6.75～8.25V	10.8～13.5V	13.5～16.5V	21.6～26.4V	26～32V	43.2～52.8V
AC input voltage range	85～132VAC/180～264VAC selected by switch 47～63Hz; 255～370VDC
Input current	2.4A/115V 1.2A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload protection	105%～150%/150%～200%/105%～150% Type:Output shutdown Reset:auto recovery
Temperature coefficient	±0.03%/℃(0～50℃)
Setup, rise, hold up time	200ms, 100ms, 30ms
Vibration	10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
Working temperature & humidity	-10℃～+60℃, 20%～90%RH
Store temperature & humidity	-20℃～+85℃, 10%～95%RH
Overall dimension	199×98×38mm
Weight	0.65Kg
