| Model | S-1200-5 | S-1200-12 | S-1200-15 | S-1200-24 | S-1200-48 |
|---|---|---|---|---|---|
| DC output voltage | 5V | 12V | 15V | 24V | 48V |
| Output voltage range | ±2% | ±1% | ±1% | ±1% | ±1% |
| Rated output current | 180A | 100A | 80A | 50A | 24A |
| Output current range | 0-180A | 0-100A | 0-80A | 0-50A | 0-24A |
| Wave and noise | 100mVp-p | 120mVp-p | 150mVp-p | 240mVp-p | 480mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| DC output power | 900W | 1200W | 1200W | 1200W | 960W |
| Efficiency | 77% | 83% | 85% | 85% | 87% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 190～240VAC/ 47～63HZ | ||||
| Input current | 11A/230V | ||||
| AC inrush current | 150A/230V | ||||
| Leakage current | <3.5mA/240VAC | ||||
| Overload protection | 105%～150% Type:Output shutdown Reset：manual recovery | ||||
| Over-voltage protection | 110%～135% | ||||
| High-temperature protection | ≥70℃ Output shutdown（0～50℃） | ||||
| Temperature coefficient | ±0.03%/℃(0～50℃) | ||||
| Setup, rise, hold up time | 1.5s, 50ms, 20ms | ||||
| Vibration | 10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | ||||
| Withstand voltage | Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC,Output and enclosure:0.5KvAC | ||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | ||||
| Working temperature & humidity | -10℃～+60℃, 20%～90%RH | ||||
| Store temperature & humidity | -20℃～+85℃, 10%～95%RH | ||||
| Overall dimension | 291×132×132mm | ||||
| Weight | 4.75Kg | ||||

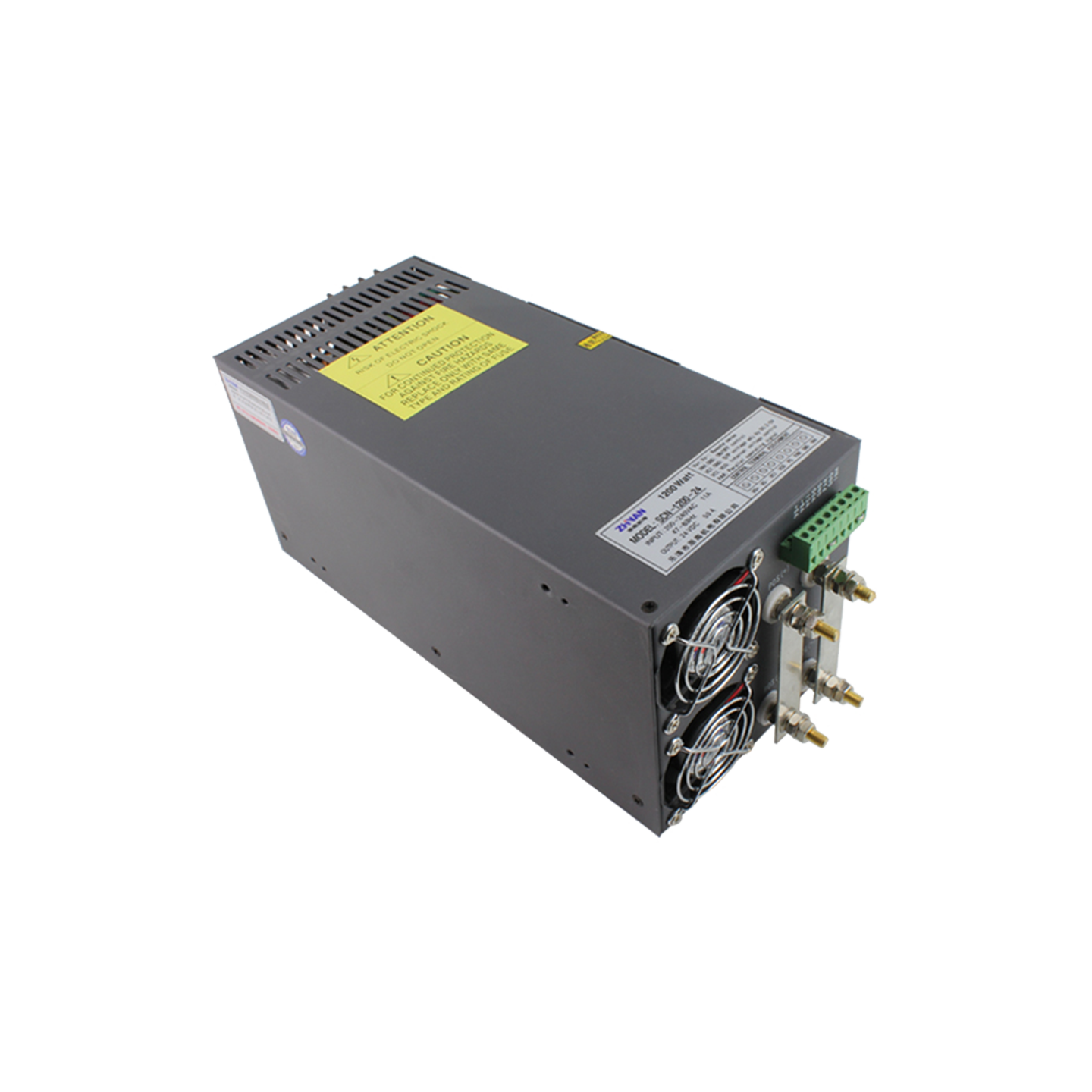

S-1200 Series Single Output Switching Power Supply | 1200W 5V 12V 15V 24V 48V AC-DC Converter
- ✔ High reliability and low ripple
- ✔ AC input range selected by switch
- ✔ Protections: Short circuit, overload, over voltage, over temperature
- ✔ Built-in remote ON-OFF control and remote sense function
- ✔ With parallel function
- ✔ Adjustable output voltage 20%-100% by external 1-5V control
- ✔ Forced air cooling by built-in DC fan
