| Model | S-15-5 | S-15-12 | S-15-24 |
|---|---|---|---|
| DC output voltage | 5V | 12V | 24V |
| Output voltage range | ±2% | ±1% | ±1% |
| Rated output current | 3A | 1.3A | 0.7A |
| Output current range | 0-3A | 0-1.3A | 0-0.7A |
| Wave and noise | 50mVp-p | 50mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ||
| Load stability | ±1% | ±0.5% | ±0.5% |
| DC output power | 15W | 15.6W | 16.8W |
| Efficiency | 65% | 68% | 72% |
| Adjustable range for DC voltage | +10%,-5% | ±10% | ±10% |
| AC input voltage range | 85～132VAC/170～264VAC selected by switch 47～63Hz; 240～370VDC | ||
| Input current | 0.5A/115V 0.25A/230V | ||
| AC inrush current | Cold-start current 15A/115V 30A/230V | ||
| Leakage current | <0.5mA/240VAC | ||
| Overload protection | 105%～150% Type:pulsing hiccup shutdown Reset：auto recovery | ||
| Temperature coefficient | ±0.02%/℃(0～50℃) | ||
| Setup, rise, hold up time | 200ms, 100ms, 30ms | ||
| Vibration | 10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | ||
| Withstand voltage | Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC, Output and enclosure:0.5KvAC | ||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | ||
| Working temperature & humidity | -10℃～+60℃, 20%～90%RH | ||
| Store temperature & humidity | -20℃～+85℃, 10%～95%RH | ||
| Overall dimension | 99×97×35mm | ||
| Weight | 0.3Kg | ||

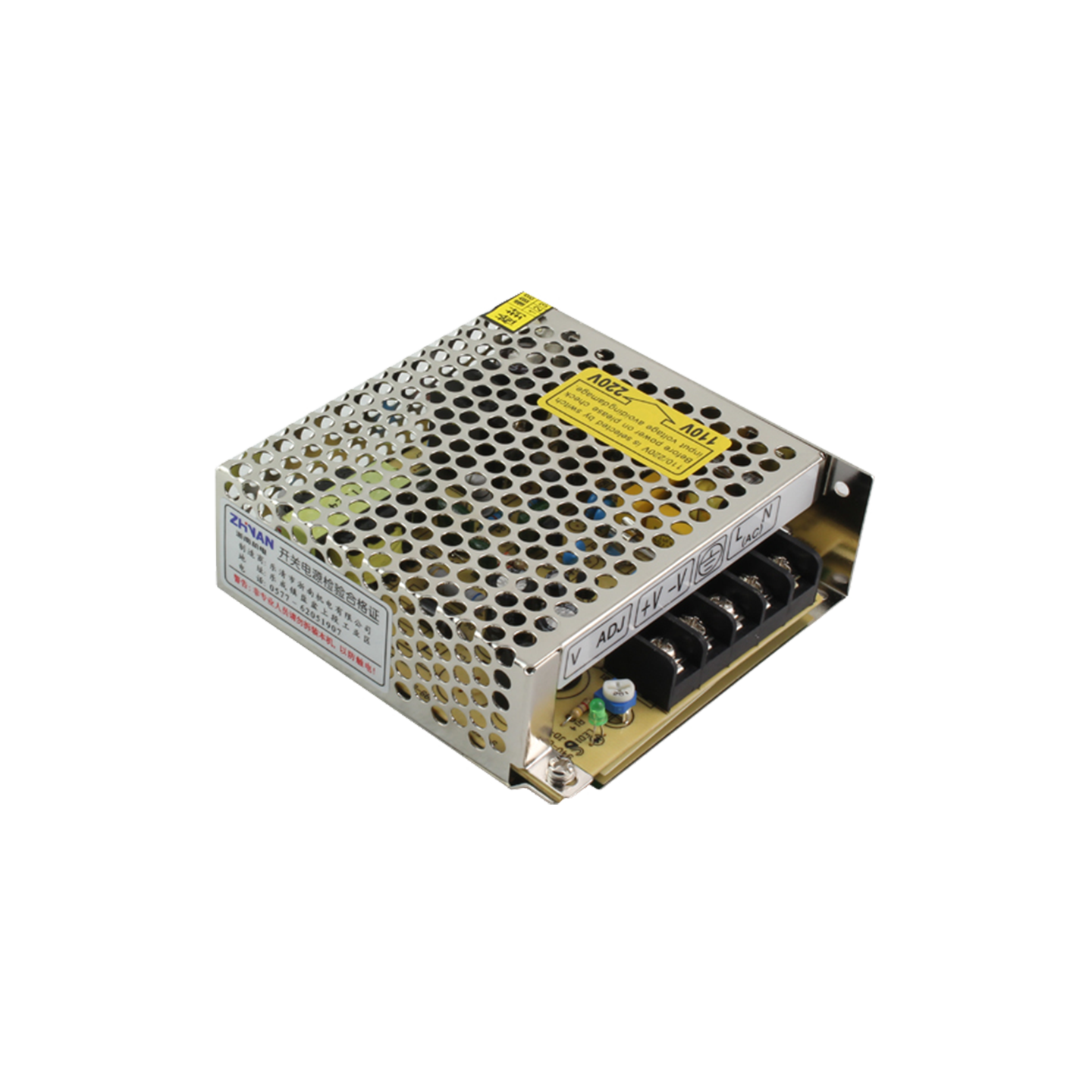

S-15 Series Single Output Switching Power Supply | 15W 12V 24V 5V AC-DC Converter
S-15 Series single output switching power supply, low price, high reliability, worldwide AC input, multiple output voltages, protections, Yueqing Zhenan Electromechanical Co., Ltd.
- ✔ Low price and high reliability
- ✔ AC input power suitable for the world
- ✔ 100% full-load burn-in test
- ✔ Installed with EMI filter, minimum wave
- ✔ Soft-start current can reduce the AC input impact efficiency
- ✔ With short-circuit and overload protection
- ✔ High efficiency and low operation temperature
