| Model | S-150-5 | S-150-7.5 | S-150-9 | S-150-12 | S-150-13.5 | S-150-15 | S-150-24 | S-150-27 | S-150-48 |
|---|---|---|---|---|---|---|---|---|---|
| DC output voltage | 5V | 7.5V | 9V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Output voltage range | ±2% | ±1% | |||||||
| Rated output current | 30A | 20A | 16.7A | 12.5A | 11.2A | 10A | 6.5A | 5.6A | 3.2A |
| Output current range | 0-30A | 0-20A | 0-16.7A | 0-12.5A | 0-11.2A | 0-10A | 0-6.5A | 0-5.6A | 0-3.2A |
| Wave and noise | 150mVp-p | 150mVp-p | 180mVp-p | 180mVp-p | 240mVp-p | ||||
| Inlet stability | ±0.5% | ±0.3% | ±0.2% | ||||||
| Load stability | ±0.5% | ±0.3% | ±0.2% | ||||||
| DC output power | 150W | 150W | 150.3W | 150W | 151.2W | 150W | 156W | 151.2W | 153.6W |
| Efficiency | 70% | 80% | 80% | 82% | 83% | 84% | 85% | 86% | 87% |
| Adjustable range for DC voltage | 4.5～5.5V | 6～8.3V | 8～10.4V | 10.6～13.2V | 12～15V | 13.5～16.5V | 21～28V | 24～30V | 43～52V |
| AC input voltage range | 85～132VAC/176～264VAC selected by switch 47～63Hz; 248～370VDC | ||||||||
| Input current | 3.2A/115V 1.6A/230V | ||||||||
| AC inrush current | Cold-start current 35A | ||||||||
| Leakage current | <3.5mA/240VAC | ||||||||
| Overload protection | 105%～150% Type:Output shutdown Reset:auto recovery | ||||||||
| Over-voltage protection | 115%～135% | 125%～145% | 115%～135% | – | |||||
| Temperature coefficient | ±0.03%/℃(0～50℃) | ||||||||
| Setup, rise, hold up time | 100ms, 50ms, 20ms | ||||||||
| Vibration | 10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | ||||||||
| Withstand voltage | Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC,Output and enclosure:0.5KvAC | ||||||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | ||||||||
| Working temperature & humidity | -10℃～+60℃, 20%～90%RH | ||||||||
| Store temperature & humidity | -20℃～+85℃, 10%～95%RH | ||||||||
| Overall dimension | 199×110×50mm | ||||||||
| Weight | 0.8Kg | ||||||||

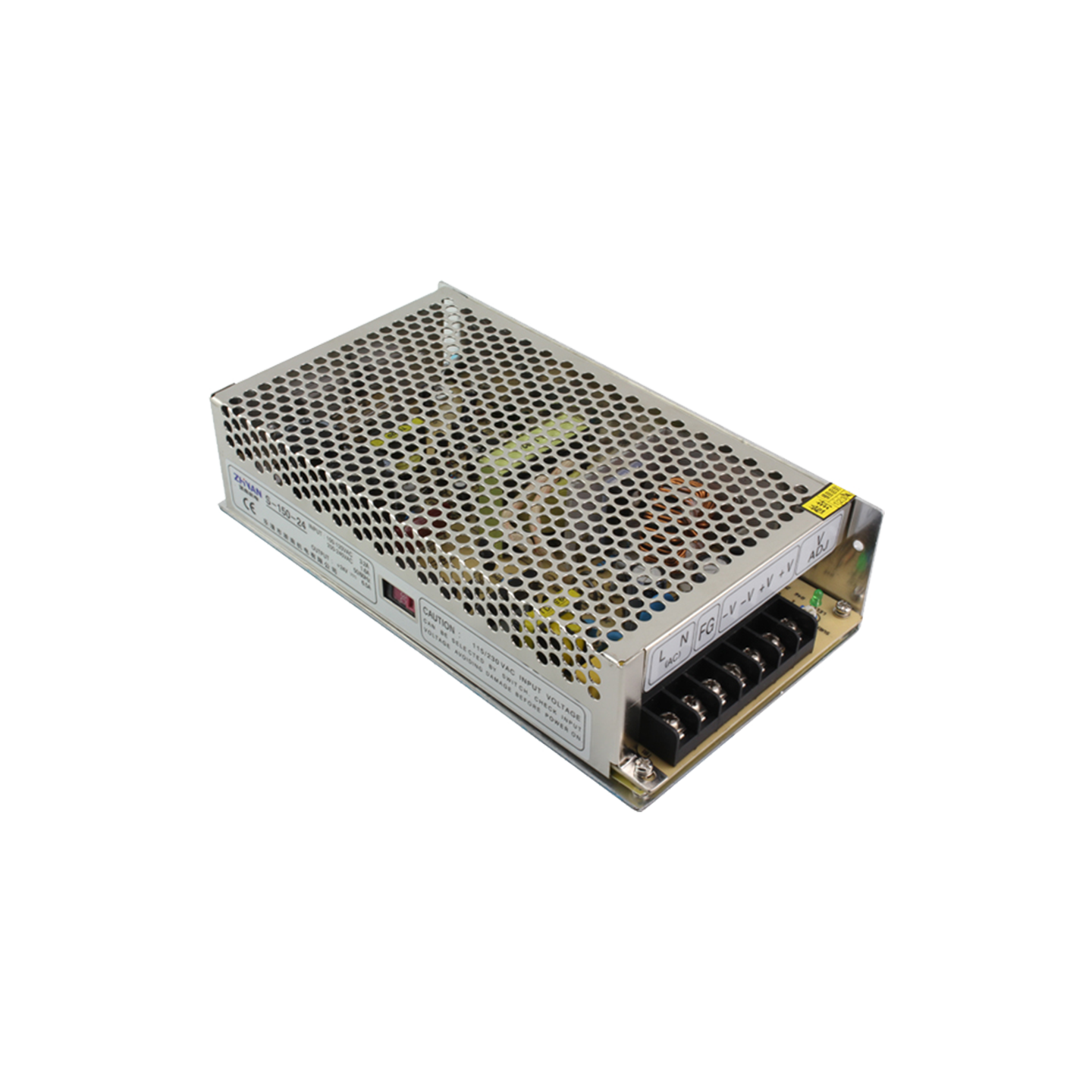

S-150 Series Single Output Switching Power Supply | 150W 5V 7.5V 9V 12V 13.5V 15V 24V 27V 48V AC-DC Converter
- ✔ Low price and high reliability
- ✔ AC input power suitable for the world
- ✔ 100% full-load burn-in test
- ✔ Installed with EMI filter, minimum wave
- ✔ Soft-start current can reduce the AC input impact efficiency
- ✔ With short-circuit and overload protection
- ✔ High efficiency and low operation temperature
