| Model | S-200-5 | S-200-12 | S-200-15 | S-200-24 |
|---|---|---|---|---|
| DC output voltage | 5V | 12V | 15V | 24V |
| Output voltage range | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 35A | 16.5A | 13.3A | 8.5A |
| Output current range | 0-35A | 0-16.5A | 0-13.3A | 0-8.5A |
| Wave and noise | 100mVp-p | |||
| Inlet stability | ±0.5% | |||
| Load stability | ±1% | ±0.5% | ||
| DC output power | 200W | |||
| Efficiency | 75% | 79.5% | 80% | 81.5% |
| Adjustable range for DC voltage | 4.75～5.5V | 10.8～13.2V | 13.5～16.5V | 21.6～26.4V |
| AC input voltage range | 170～264VAC 47～63HZ; 248～370VDC | |||
| Input current | 4.2A/115V 2.2A/230V | |||
| AC inrush current | Cold-start current 30A/115V 60A/230V | |||
| Leakage current | <0.5mA/240VAC | |||
| Overload protection | 105%～150% Type:Output shutdown Reset：auto recovery | |||
| Over-voltage protection | 115%～135% | |||
| Temperature coefficient | ±0.03%/℃(0～50℃) | |||
| Setup, rise, hold up time | 200ms, 100ms, 20ms | |||
| Vibration | 10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |||
| Withstand voltage | Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC,Output and enclosure:0.5KvAC | |||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||
| Working temperature & humidity | -10℃～+60℃, 20%～90%RH | |||
| Store temperature & humidity | -20℃～+85℃, 10%～95%RH | |||
| Overall dimension | 199×110×50mm | |||
| Weight | 0.9Kg | |||

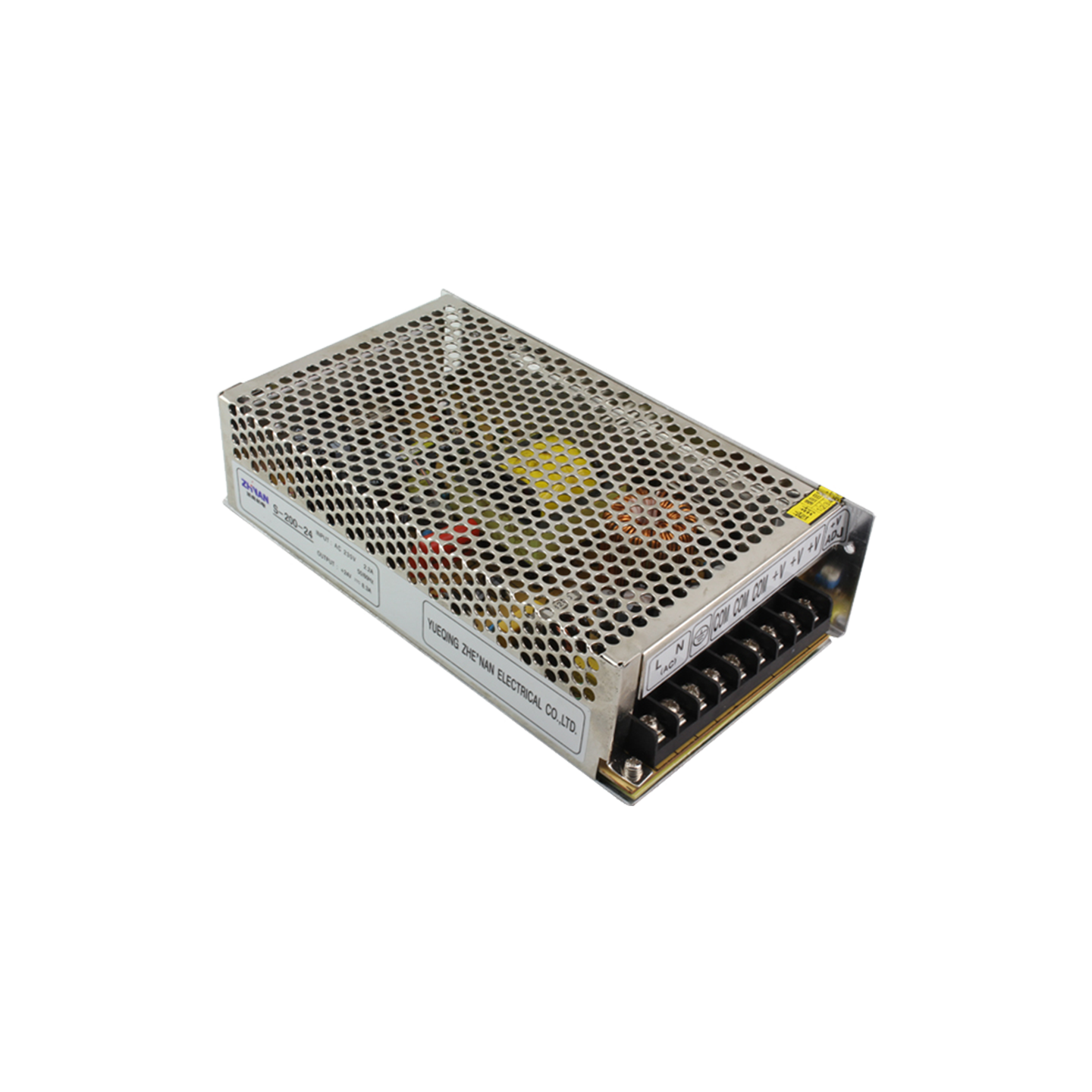

S-200 Series Single Output Switching Power Supply | 200W 5V 12V 15V 24V AC-DC Converter
- ✔ Low price and high reliability
- ✔ AC input power suitable for the world
- ✔ 100% full-load burn-in test
- ✔ Installed with EMI filter, minimum wave
- ✔ Soft-start current can reduce the AC input impact efficiency
- ✔ With short-circuit and overload protection
- ✔ High efficiency and low operation temperature
