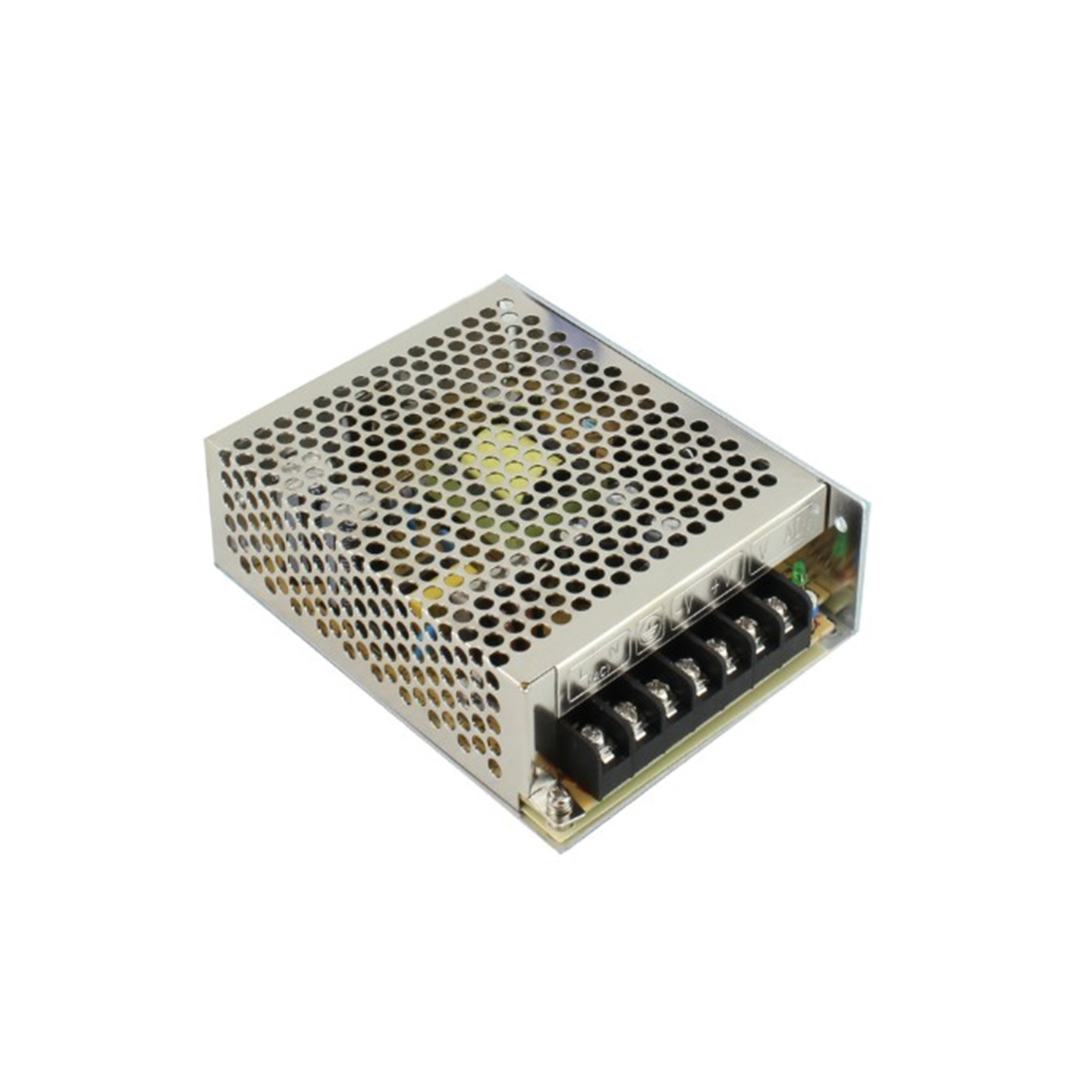

Name: S-35 Series Single Output Switching Power Supply | 35W 12V 24V 5V 15V AC-DC Converter
SKU: S-35

S-35 Series Single Output Switching Power Supply | 35W 12V 24V 5V 15V AC-DC Converter

S-35 Series single output switching power supply, low price, high reliability, worldwide AC input, multiple output voltages, protections, Yueqing Zhenan Electromechanical Co., Ltd.

✔ Low price and high reliability
✔ AC input power suitable for the world
✔ 100% full-load burn-in test
✔ Installed with EMI filter, minimum wave
✔ Soft-start current can reduce the AC input impact efficiency
✔ With short-circuit and overload protection
✔ High efficiency and low operation temperature

Model	S-35-5	S-35-12	S-35-15	S-35-24
DC output voltage	5V	12V	15V	24V
Output voltage range	±2%	±1%	±1%	±1%
Rated output current	7A	3A	2.4A	1.5A
Output current range	0-7A	0-3A	0-2.4A	0-1.5A
Wave and noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%
Load stability	±1%	±0.5%	±0.5%	±0.5%
DC output power	35W	36W	36W	36W
Efficiency	70%	76%	78%	78%
Adjustable range for DC voltage	+10%,-5%	±10%	±10%	±10%
AC input voltage range	85～132VAC/170～264VAC selected by switch 47～63Hz; 240～370VDC
Input current	0.8A/115V 0.45A/230V
AC inrush current	Cold-start current 18A/115V 36A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%～150% Type:Output shutdown Reset：auto recovery
Temperature coefficient	±0.03%/℃(0～50℃)
Setup, rise, hold up time	200ms, 100ms, 30ms
Vibration	10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
Working temperature & humidity	-10℃～+60℃, 20%～90%RH
Store temperature & humidity	-20℃～+85℃, 10%～95%RH
Overall dimension	129×98×38mm
Weight	0.4Kg
