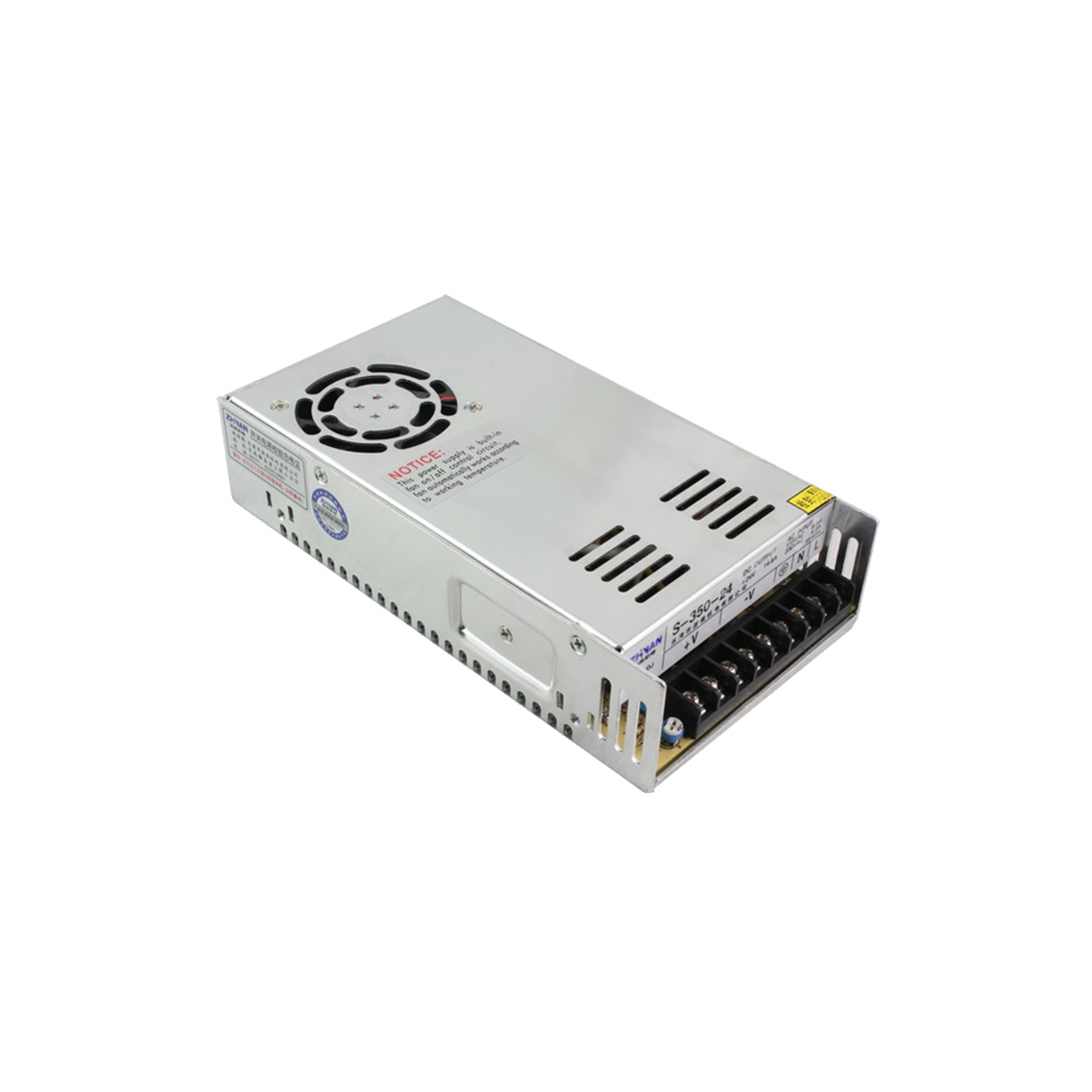

Name: S-350 Series Single Output Switching Power Supply | 350W 5V 7.5V 12V 13.5V 15V 24V 27V 48V AC-DC Converter
SKU: S-350

S-350 Series Single Output Switching Power Supply | 350W 5V 7.5V 12V 13.5V 15V 24V 27V 48V AC-DC Converter

✔ Low price and high reliability
✔ AC input power suitable for the world
✔ 100% full-load burn-in test
✔ Installed with EMI filter, minimum wave
✔ Soft-start current can reduce the AC input impact efficiency
✔ With short-circuit and overload protection
✔ High efficiency and low operation temperature

Model	S-350-5	S-350-7.5	S-350-12	S-350-13.5	S-350-15	S-350-24	S-350-27	S-350-48
DC output voltage	5V	7.5V	12V	13.5V	15V	24V	27V	48V
Output voltage range	±2%	±2%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	50A	40A	29A	25.8A	23.2A	14.6A	13A	7.3A
Output current range	0-50A	0-40A	0-29A	0-25.8A	0-23.2A	0-14.6A	0-13A	0-7.3A
Wave and noise	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	240mVp-p
Inlet stability	±0.5%
Load stability	±1%	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	250W	300W	348W	348.3W	348W	350.4W	351W	350.4W
Efficiency	73%	76%	74%	79%	78%	81%	82%	83%
Adjustable range for DC voltage	4.5～5.6V	6～9V	10～13.2V	12～15V	13.5～18V	20～26.4V	26～32V	41～56V
AC input voltage range	90～132VAC/180～264VAC selected by switch 47～63Hz; 254～370VDC
Input current	6.5A/115V 4A/230V
AC inrush current	25A/115V 50A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%～150% Type:Output shutdown Reset:auto recovery
Over-voltage protection	5.75～6.75V	9.4～10.9V	13.8～16.2V	15.5～18.2V	18～21V	27.6～32.4V	33.7～39.2V	57.6～67.2V
High-temperature protection	≥90℃ Fan on, ≤55～60℃ Fan off, ≥80～85℃ Output shutdown
Temperature coefficient	±0.03%/℃(0～50℃)
Setup, rise, hold up time	200ms, 100ms, 20ms
Vibration	10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
Working temperature & humidity	-10℃～+60℃, 20%～90%RH
Store temperature & humidity	-20℃～+85℃, 10%～95%RH
Overall dimension	215×115×50mm
Weight	1.15Kg
