| Model | S-50-5 | S-50-12 | S-50-15 | S-50-24 |
|---|---|---|---|---|
| DC output voltage | 5V | 12V | 15V | 24V |
| Output voltage range | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 10A | 4.2A | 3.4A | 2.1A |
| Output current range | 0-10A | 0-4.2A | 0-3.4A | 0-2.1A |
| Wave and noise | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | |||
| Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% |
| DC output power | 50W | 50.4W | 51W | 50.4W |
| Efficiency | 71% | 78% | 78% | 78% |
| Adjustable range for DC voltage | +10%,-5% | ±10% | ±10% | ±10% |
| AC input voltage range | 85～132VAC/170～264VAC selected by switch 47～63Hz; 240～370VDC | |||
| Input current | 1.3A/115V 0.65A/230V | |||
| AC inrush current | Cold-start current 30A/115V 60A/230V | |||
| Leakage current | <0.5mA/240VAC | |||
| Overload protection | 105%～150% Type:Output shutdown Reset：auto recovery | |||
| Temperature coefficient | ±0.03%/℃(0～50℃) | |||
| Setup, rise, hold up time | 200ms, 100ms, 30ms | |||
| Vibration | 10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |||
| Withstand voltage | Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC, Output and enclosure:0.5KvAC | |||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||
| Working temperature & humidity | -10℃～+60℃, 20%～90%RH | |||
| Store temperature & humidity | -20℃～+85℃, 10%～95%RH | |||
| Overall dimension | 157×97×38mm | |||
| Weight | 0.5Kg | |||

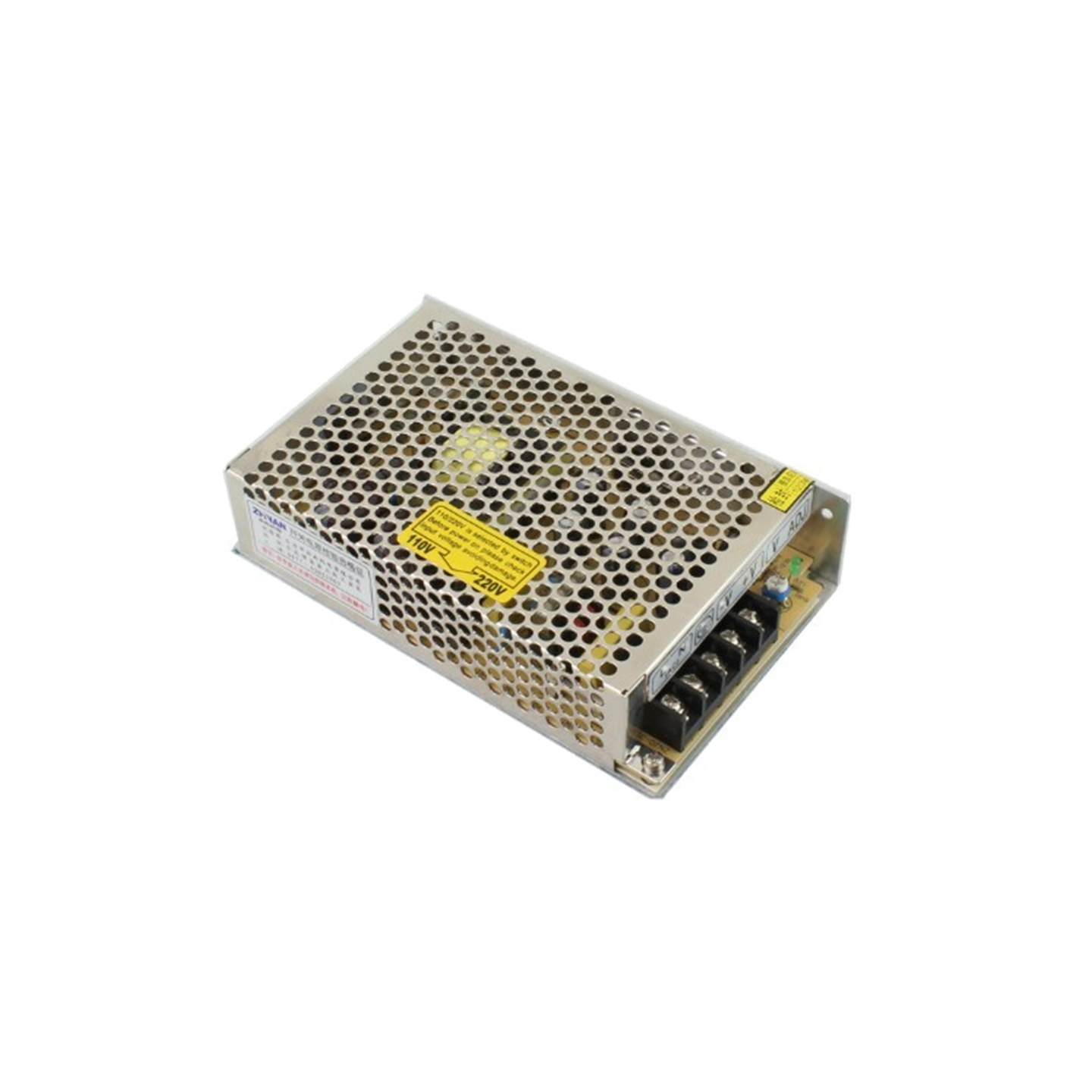

S-50 Series Single Output Switching Power Supply | 50W 12V 24V 5V 15V AC-DC Converter
- ✔ Low price and high reliability
- ✔ AC input power suitable for the world
- ✔ 100% full-load burn-in test
- ✔ Installed with EMI filter, minimum wave
- ✔ Soft-start current can reduce the AC input impact efficiency
- ✔ With short-circuit and overload protection
- ✔ High efficiency and low operation temperature
