| Model | S-600-12 | S-600-24 | S-600-48 |
|---|---|---|---|
| DC output voltage | 12V | 24V | 48V |
| Output voltage range | ±1% | ±1% | ±1% |
| Rated output current | 50A | 25A | 12.5A |
| Output current range | 0-50A | 0-25A | 0-12.5A |
| Wave and noise | 150mVp-p | 150mVp-p | 200mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±0.5% | ±0.5% | ±0.5% |
| DC output power | 600W | 600W | 600W |
| Efficiency | 83% | 85% | 86% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% |
| AC input voltage range | 170～264VAC | ||
| Input current | 7A/115V 3.5A/230V | ||
| AC inrush current | 40A/230V | ||
| Leakage current | <3.5mA/240VAC | ||
| Overload protection | 105%～150% Type:Output shutdown Reset:auto recovery | ||
| Over-voltage protection | 13.8～16.2V | 27.6～32.4V | 57.6～67.2V |
| High-temperature protection | ≥90℃ Fan on, ≤55℃～60℃ Fan off, ≥80℃～85℃ Output shutdown | ||
| Temperature coefficient | ±0.03%/℃(0～50℃) | ||
| Setup, rise, hold up time | 1.5s, 50ms, 20ms | ||
| Vibration | 10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | ||
| Withstand voltage | Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC,Output and enclosure:0.5KvAC | ||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | ||
| Working temperature & humidity | -10℃～+60℃, 20%～90%RH | ||
| Store temperature & humidity | -20℃～+85℃, 10%～95%RH | ||
| Overall dimension | 241×124×65mm | ||
| Weight | 1.2Kg | ||

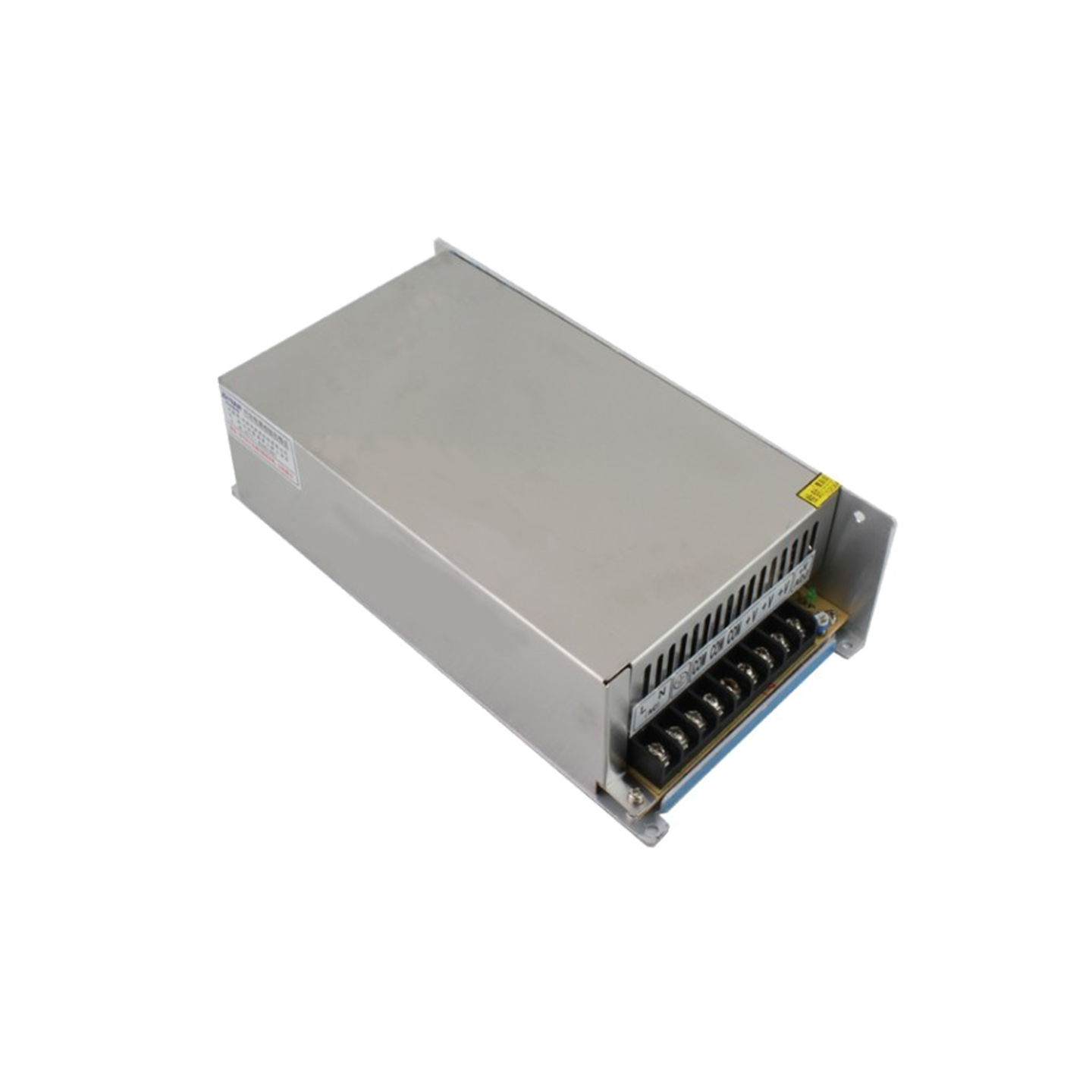

S-600 Series Single Output Switching Power Supply | 600W 12V 24V 48V AC-DC Converter
- ✔ Low price and high reliability
- ✔ AC input power suitable for the world
- ✔ 100% full-load burn-in test
- ✔ Installed with EMI filter, minimum wave
- ✔ Soft-start current can reduce the AC input impact efficiency
- ✔ With short-circuit and overload protection
- ✔ High efficiency and low operation temperature
