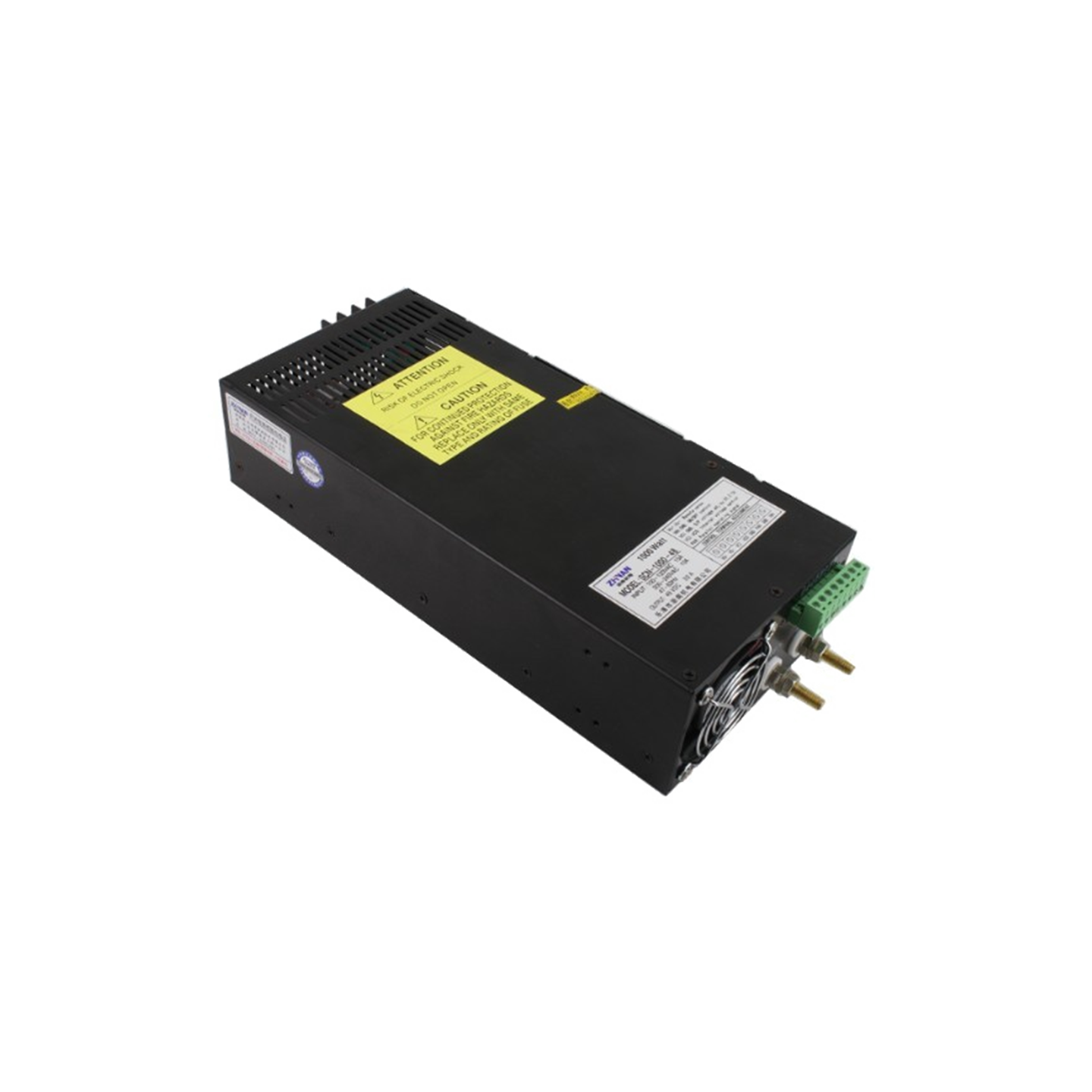

Name: S-800 Series Single Output Switching Power Supply | 800W 12V 13.5V 15V 24V 27V 48V AC-DC Converter
SKU: S-800

S-800 Series Single Output Switching Power Supply | 800W 12V 13.5V 15V 24V 27V 48V AC-DC Converter

Model	S-800-12	S-800-13.5	S-800-15	S-800-24	S-800-27	S-800-48
DC output voltage	12V	13.5V	15V	24V	27V	48V
Output voltage range	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	66A	59A	53A	33A	30A	16A
Output current range	0-66A	0-59A	0-53A	0-33A	0-30A	0-16A
Wave and noise	150mVp-p	150mVp-p	150mVp-p	240mVp-p	240mVp-p	480mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
DC output power	800W	800W	800W	800W	800W	800W
Efficiency	80%	81%	81%	85.5%	86.5%	87%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%	±10%	±10%
AC input voltage range	190～240VAC/ 47～63HZ; 230～240VAC
Input current	8A/230V
AC inrush current	75A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%～150% Type:Output shutdown Reset：manual recovery
Over-voltage protection	110%～135%
High-temperature protection	≥70℃ Output shutdown（0～50℃）
Temperature coefficient	±0.03%/℃(0～50℃)
Setup, rise, hold up time	1.5s, 50ms, 20ms
Vibration	10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
Working temperature & humidity	-10℃～+60℃, 20%～90%RH
Store temperature & humidity	-20℃～+85℃, 10%～95%RH
Overall dimension	291×132×68mm
Weight	2.3Kg
