| Model | T-30A (CH1/CH2/CH3) | T-30B (CH1/CH2/CH3) |
|---|---|---|
| CH1 Output Voltage | 5V | 5V |
| CH2 Output Voltage | 12V | 12V |
| CH3 Output Voltage | -5V | -12V |
| CH1 Output Voltage Range | ±2% | ±2% |
| CH2 Output Voltage Range | +2%, -6% | +2%, -10% |
| CH3 Output Voltage Range | +2%, -10% | ±6% |
| CH1 Output Current | 3A | 3A |
| CH2 Output Current | 1A | 1A |
| CH3 Output Current | 0.5A | 0.5A |
| CH1 Output Current Range | 0.5-3A | 0.5-3A |
| CH2 Output Current Range | 0.1-1A | 0.1-1A |
| CH3 Output Current Range | 0.1-0.5A | 0.1-0.5A |
| Wave and noise | 50mVp-p/100mVp-p/50mVp-p | 50mVp-p/100mVp-p/100mVp-p |
| Inlet stability | ±0.5%/±1%/±1% | ±0.5%/±1%/±1% |
| Load stability | ±0.5%/±5%/±5% | ±0.5%/±5%/±5% |
| DC output power | 30W | 33W |
| Efficiency | 70% | 72% |
| Adjustable range for DC voltage | CH1: +10%, -5% | |
| AC input voltage range | 85～132VAC/170～264VAC selected by switch 47～63Hz; 248～370VDC | |
| Input current | 0.8A/115V 0.45A/230V | |
| AC inrush current | Cold-start current 18A/115V 36A/230V | |
| Leakage current | <0.5mA/240VAC | |
| Overload protection | 105%～150% Type: Output shutdown Reset: auto recovery | |
| Temperature coefficient | ±0.03%/℃(0～50℃) ON+5V | |
| Setup, rise, hold up time | 200ms, 50ms, 30ms | |
| Vibration | 10～500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |
| Withstand voltage | Input and output internal:1.5KvAC, Input and enclosure: 1.5KvAC, Output and enclosure:0.5KvAC | |
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |
| Working temperature & humidity | -10℃～+60℃, 20%～90%RH | |
| Store temperature & humidity | -20℃～+85℃, 10%～95%RH | |
| Overall dimension | 129×98×38mm | |
| Weight | 0.4Kg | |

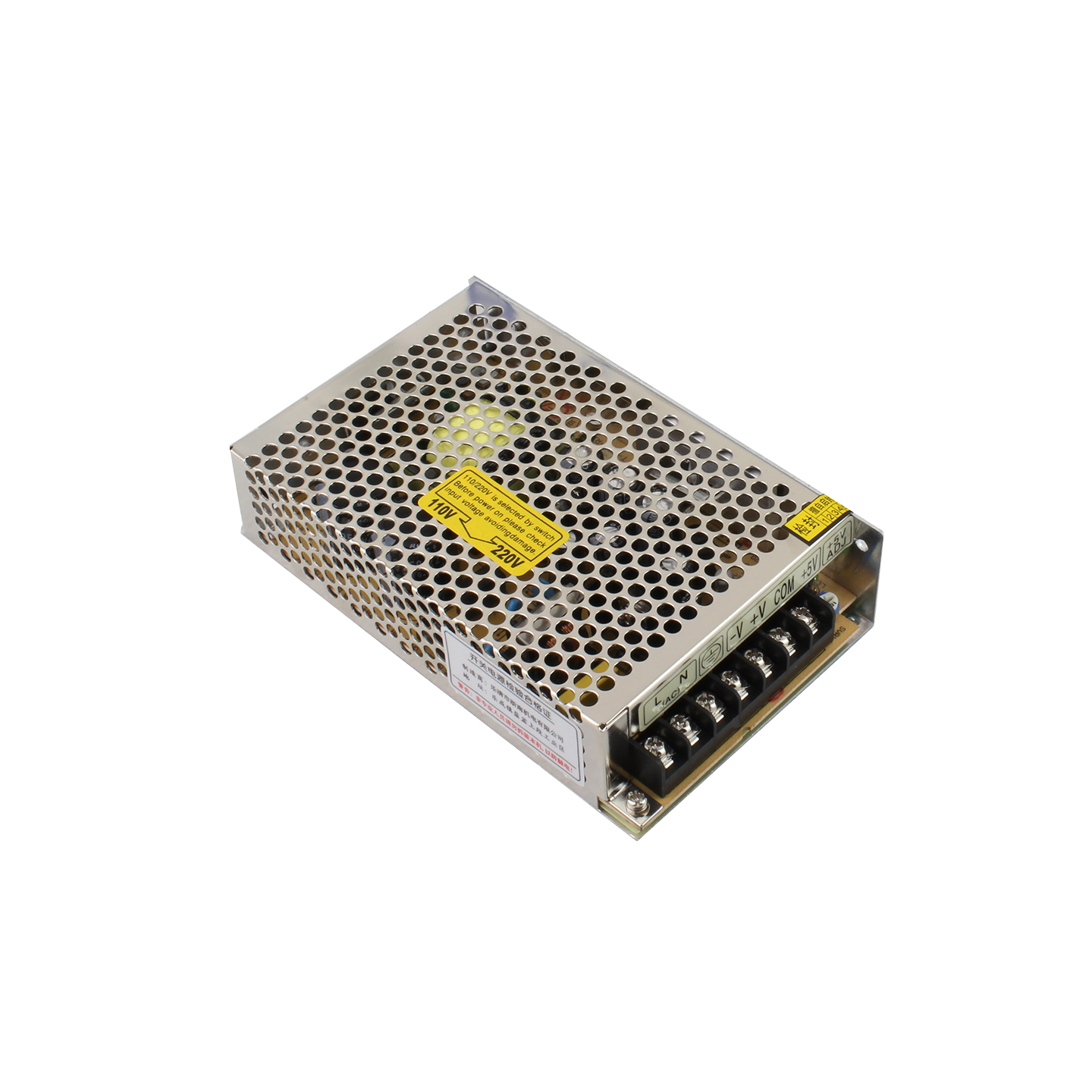

T-30 Series Triple Output Switching Power Supply | 30W AC-DC Converter
T-30 Series triple output switching power supply, versatile triple channels, low price and high reliability, worldwide AC input, protections, Yueqing Zhenan Electromechanical Co., Ltd.
- ✔ Triple output channels for more applications
- ✔ Low price and high reliability
- ✔ AC input power suitable for the world
- ✔ 100% full-load burn-in test
- ✔ Installed with EMI filter, minimum wave
- ✔ Soft-start current can reduce the AC input impact efficiency
- ✔ With short-circuit and overload protection
- ✔ High efficiency and low operation temperature
